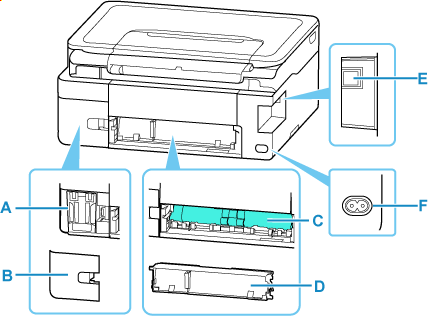

Rear View

A: Maintenance Cartridge

Absorbs ink used for cleaning.

• Replacing the Maintenance Cartridge

B: Maintenance Cover

Remove when replacing the maintenance cartridge.

C: Transport Unit

Open when removing jammed paper. When removing the unit, do so after placing a finger on the depression in the center right.

D: Transport Unit Cover

Detach when removing jammed paper.

E: USB Port

Plug in the USB cable to connect the printer with a computer.

F: Power Cord Connector

Plug in the supplied power cord.

Important

• Do not touch the metal casing.

• Do not plug in or unplug the USB cable while the printer is printing or scanning with the computer. This can cause trouble.
